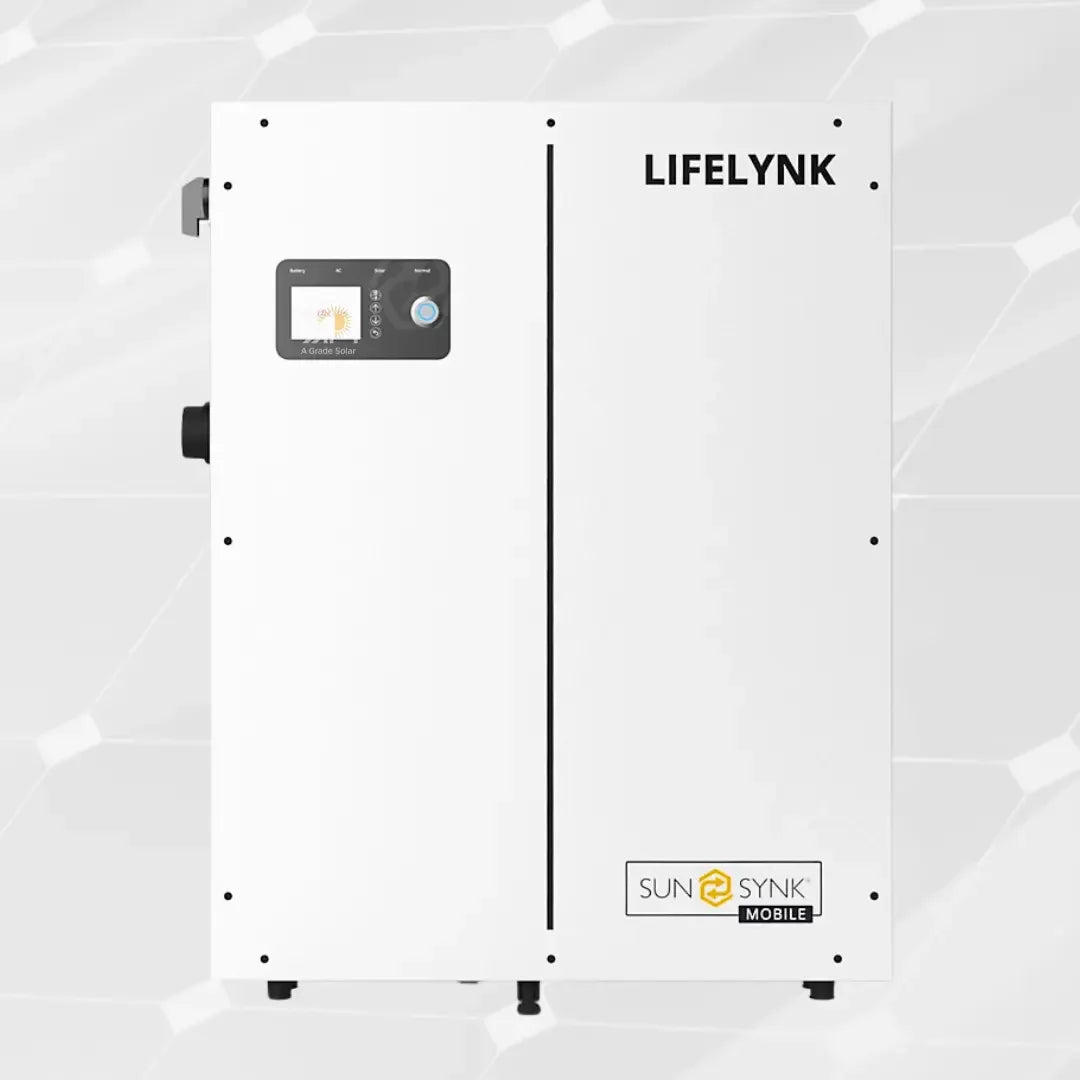

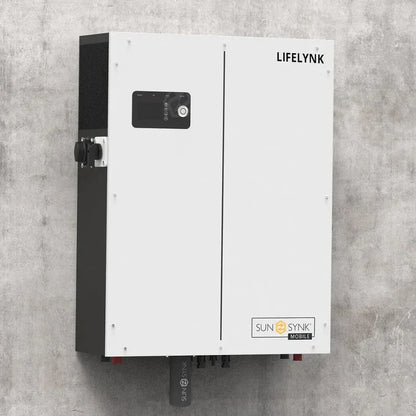

Sunsynk Lifelynk S 2.5kW All-in-One Hybrid Inverter & Battery System

Sunsynk Lifelynk S – All-in-One Hybrid Inverter & Battery System

Simplify your solar journey with the Sunsynk Lifelynk S — a complete all-in-one hybrid inverter and battery system designed for both new installations and retrofits. Whether you're upgrading an existing home or setting up a brand-new system, the Lifelynk S gets you up and running faster than ever with its Plug and Play design and factory pre-set settings.

Manage and monitor your entire energy system from anywhere using the Sunsynk Connect platform — full control at your fingertips, 24/7.

Key Features

• Plug and Play: Built-in connection points for Load, Grid, CT, and Wi-Fi data logger — no complicated wiring
• Full Control: Complete monitoring and control via Sunsynk Connect platform
• Hassle-Free Installation: Factory pre-set settings mean faster, simpler setup
• Ideal for New Homes & Retrofits

Technical Specifications (Model: SM2.5kWLL)

Battery & PV Input

• Battery Type: LiFePO4
• Nominal Battery Voltage: 51.2V
• Battery Capacity: 2000Wh (2kWh)
• Max. DC Input Power (Solar): 3000W
• MPPT Voltage Range: 120V – 450V
• Max. Charge Current: 42A (Configurable)

AC Output & Input

• Max. Output Power: 2500W
• Peak Output Apparent Power: 5000VA
• Nominal Output Voltage: 230Vac
• Transfer Time: 10ms (Bypass to Inverter)
• Max. Efficiency: 97.6%

General & Physical

• Dimensions: 701 × 544 × 105 mm
• Net Weight: 38.5kg
• Operating Temperature: -25°C to +50°C
• Degree of Protection: IP20
• Cooling: Fan

Protections

• Battery Over-Charge Protection
• Battery Low-Voltage Protection
• Over-Temperature Protection
• Output Short-Circuit Protection
• Output Overload Protection
